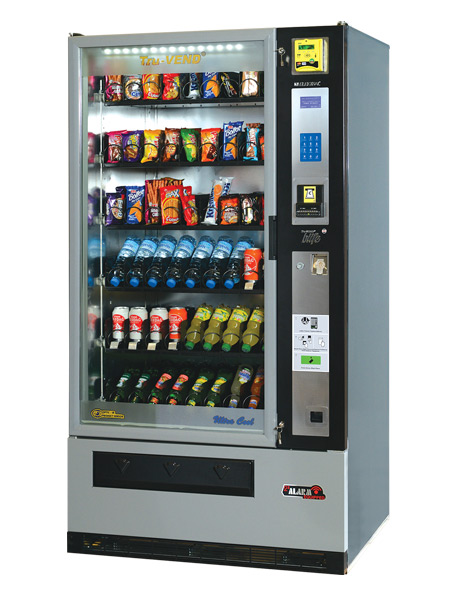

Snacks Vending Machine Maxi Büfe

International norms, in conformity with CE and produced under ISO 9001: 2008 QMS.

16-bit High Performance Microprocessor Controlled MDB and EXECUTIVE protocols supporting Change Giver,

Coin Selector, Bill Validator and Cashless Payment Systems.

Full-View Multi-Selection Snack Vending Machine with Large Double Glazed LOW E Tempered Glass Front

Max. 7 Trays, 63 Selections, max. 1197 Product Storage Capacity

(Standard 6 Trays, 54 Selections)

Adjustable Illumination and User Friendly Graphical LCD

Two Stage Alarm against Vandalism (120 db Audio Alarm, Unauthorized Door Opening & Impact Sensor)

High Power Cooling Module providing low temperatures even in summer days

Dual Position Trays enabling Easy Product Loading and Extra Stock Space on Top Storage Tray

Label Holder providing easy Price Labels inserting

Optional Vandalism Protective Side Pieces (Left/Right)

Large Advertisement Space on Both Sides

3x4 User Friendly Capacitive Touch Keypad & Optional Anti-Vandalism Weatherproof Metallic Keypad

Real Time Time/Date Function Enabling Timetable Pricing

Effective Electronic thermostat controlled energy efficiency cooling feature providing long product life

Preset timetable Power Saving Mode with programmable low temperature level

User Friendly Customer Interface and Control Menu

High storage capacity EEPROM enabling storage of Settings and Statistics, 8 Mbit Flash for keeping LOG info
Compatible to all currencies

BITE (Built-in Test Equipment) automatically Fixing problems and/or displaying Warning Messages on LCD and Collecting data on errorneous sales

Enhanced Motor Control System enabling detailed functional control

Easy Selection Pricing Feature

Different Temperature Zone Operation with Optional Cooling and Temperature Display on LCD

Silent and Vibration Free Operation

Large Swinging and counterbalanced product dispensing slot and automatic locking mechanism inside the
compartment against theft and access to inner parts of the Vending Machine

Ensures reliable operation with IR Product Sensor

Dual Lock for increased security

Switch Controlled Menu Entry with 4 Digit PIN Code Protection and two level Password (Owner-Operator)

ALARM Equipped against Vandalism. 120 db Alarm against unauthorized and forced Access

Highly corrosion-resistant production material

Robust Steel Cabinet and Reinforced Foam Insulation

RAL 7016 Anthracite / RAL 9007 Grey ( Different RAL Colour Options available for large orders)

Wheel Based Unit enabling easy location change

Project based quantity orders for custom made special vendors

GSM/GPRS Remote Access and Data Transfer (Telemetry) (Optional)

Data Transmission to PC via Bluetooth Module(Optional)

Distance Data Transfer up to 1 km cable connection and RS485 interface for Master-Slave Operation(Optional)

Remote Firmware Update Availability with Boot-loader for GPRS Modem Equipped Machines(Optional)

External SD Card, Ethernet Module, Wireless Module connection availability(Optional)

1 Year Warranty, 10 years parts supply - After Sales Services Availability as per our General Conditions of Sales, Delivery & Warranty

MAIN BOARD FEATURES

27 VDC 2A Input Voltage
96 pcs (8 Trays x 12) full function motor control (Motor Control
Software)
4 different Relay Controls
MDB-EXECUTIVE-CCTALK-PARALLEL and hardware interfaces
2 RS485 ports (Communication with IR Product Sensor and other applications)

2 Handshake RS232 Ports
1 TTL RS232 Port
1 External IIC Communication Port for Touchpad Keypad
1 SPI Port Supporting 2 Devices (Ethernet, Wireless, SD/MMC
Card etc. modules)
8 Analogue Entries ( 0 - 3.3V) For Analogue sensors
16 x (0-5 V) Digital Input
8 x (0-50V) Digital Input
2 different 1wire Input (for 1wire sensors)
Illumination Adjustment Control Output
High Volume Alarm Sound Output
Graphical LCD and Character LCD Support
High Performance 16 bit processor
64 kbit external eeprom (may be increased with external slot)
8 Mbit External Flash for log records
Real Time Time/Date Function
Bluetooth Communication Availability
Remote Firmware Update Availability with Boot-loader for GPRS
Modem Equipped Machines
GPRS Modem Connection via RS232 interface
